Introduction:
This thick sheet slitting line, also called metal coil slitting machine, is a kind of production line to break down master coils into smaller coils of a particular width. This coil slitting line is composed of coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinching feeding, three-roller-leveling, end-cutting, strip-aligning, disk shearing, scrap reeling, hole accumulator, pre-separator, tensioning, recoiling ,coil down car, hydraulic control, and electric control.
Due to the thickness of slitting sheet, the coil slitting line can be divided into thin coil slitting line, middle thick sheet slitting line and thick sheet slitting line. Among them, the thick sheet slitting line: strip thickness: (3-12) mm or (6-20) mm; strip width: 600-2000mm or 600-2200mm.
Advantages:
1. The thick coil slitting line is controlled by electrical controls system, a key to increasing yield; while the traditional one is adjusted by operators.
2. Offline setup, push-button slitter tooling lock-up, powered indexing tension rolls, quick-change tooling bars and automatic transmissions are on all DC motors.
3. All kinds of non-ferrous strips can be cut by cutting tools of different materials.
4. We offer tailor-made products, therefore regardless of specification or design we can make according to your requirements.
Detailed specifications:
1. WTM-(3-12)×2000mm Slitting Line
Material of coils: carbon steel, HR and CR etc
Strip thickness: 3-12 mm
Strip width: 600-2000mm
Inner diameter of coils: φ508mm, φ610mm, φ760mm
Max.outer diameter of coils: φ2000mm
Max.coil weight: 35000kg
Leveling roller: φ210×2100mm
Material of leveling roller: 40Cr, HRC55°-56°
Material of disc cutter: 6CrW2Si, HRC56°-58°
Recoiling spindle: φ508×2100mm
Slitting speed: (0-30) m/min, adjustable
2. WTM-(6-20)×2200mm Slitting Line
Material of coils: carbon steel, etc
Strip thickness: 6-20 mm
Strip width: 600-2200mm
Inner diameter of coils: φ508mm, φ610mm, φ760mm
Max.outer diameter of coils: φ2000mm
Max.coil weight: 40000kg
Leveling roller: φ210×2100mm
Material of leveling roller: 40Cr, HRC55°-56°
Material of disc cutter: 6CrW2Si, HRC56°-58°
Recoiling spindle: φ508×2100mm
Slitting speed: (0-30) m/min, adjustable
Technical parameters of thick sheet slitter:

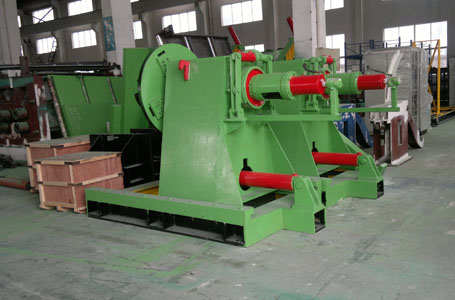

Decoiler

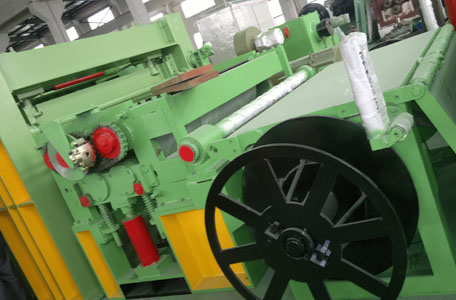

Slitting machine

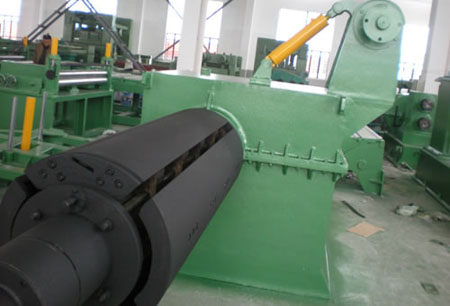

Recoiler

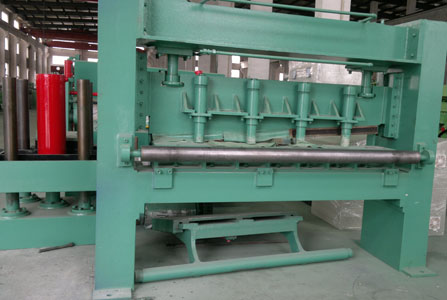

Automatic slitting line

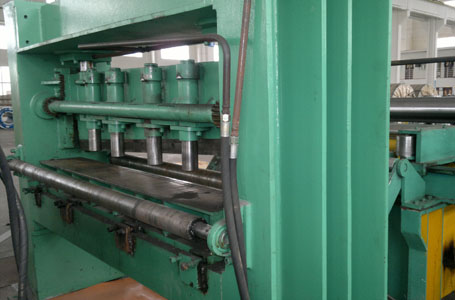

Slitting line

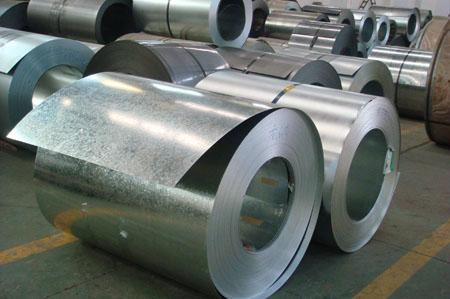

Slitted steel coils
This thick sheet slitting line, also called metal coil slitting machine, is a kind of production line to break down master coils into smaller coils of a particular width. This coil slitting line is composed of coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinching feeding, three-roller-leveling, end-cutting, strip-aligning, disk shearing, scrap reeling, hole accumulator, pre-separator, tensioning, recoiling ,coil down car, hydraulic control, and electric control.
Due to the thickness of slitting sheet, the coil slitting line can be divided into thin coil slitting line, middle thick sheet slitting line and thick sheet slitting line. Among them, the thick sheet slitting line: strip thickness: (3-12) mm or (6-20) mm; strip width: 600-2000mm or 600-2200mm.
Advantages:
1. The thick coil slitting line is controlled by electrical controls system, a key to increasing yield; while the traditional one is adjusted by operators.
2. Offline setup, push-button slitter tooling lock-up, powered indexing tension rolls, quick-change tooling bars and automatic transmissions are on all DC motors.
3. All kinds of non-ferrous strips can be cut by cutting tools of different materials.
4. We offer tailor-made products, therefore regardless of specification or design we can make according to your requirements.
Detailed specifications:
1. WTM-(3-12)×2000mm Slitting Line
Material of coils: carbon steel, HR and CR etc
Strip thickness: 3-12 mm
Strip width: 600-2000mm
Inner diameter of coils: φ508mm, φ610mm, φ760mm
Max.outer diameter of coils: φ2000mm
Max.coil weight: 35000kg
Leveling roller: φ210×2100mm
Material of leveling roller: 40Cr, HRC55°-56°
Material of disc cutter: 6CrW2Si, HRC56°-58°
Recoiling spindle: φ508×2100mm
Slitting speed: (0-30) m/min, adjustable
2. WTM-(6-20)×2200mm Slitting Line
Material of coils: carbon steel, etc
Strip thickness: 6-20 mm
Strip width: 600-2200mm
Inner diameter of coils: φ508mm, φ610mm, φ760mm
Max.outer diameter of coils: φ2000mm
Max.coil weight: 40000kg
Leveling roller: φ210×2100mm
Material of leveling roller: 40Cr, HRC55°-56°
Material of disc cutter: 6CrW2Si, HRC56°-58°
Recoiling spindle: φ508×2100mm
Slitting speed: (0-30) m/min, adjustable
Technical parameters of thick sheet slitter:
Strip thickness |
Strip width |
Max. Coil weight |
Shearing speed |
3-12mm |
900-2000mm |
30T |
40m/min |
3-14mm |
900-2000mm |
30T |
40m/min |
3-16mm |
900-2000mm |
40T |
30m/min |
5-20mm |
900-2000mm |
40T |
30m/min |
