  • Steel tube shot blasting machine

    Shot blasting machine is widely used for metal gridding, steel tube, petroleum, chemical, electric power industry. It is a kind of dry cleaning machinery. In the process of forming, processing, transporting and storing of the work piece, there will always be oxide coating, rust, slag, dust, oil and others on the surface. The machine uses high-speed blast to strike and cut the surface of the work piece in dry and non-fluid media, and realize the cleaning purpose.
    Description: This shot blasting machine is designed for the large, middle and small calibre size of the steel tube and the cylinder. Impeller head locate at multi angle, which is the high efficiency blasting wheels, shot blasting with high-speed thick blasting pills and blowing on the surface to have a tridimensional and omnibearing cleaning, to clean away the rusting layer, oxidation layer and other dirty things from surface quickly, to make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel tube.

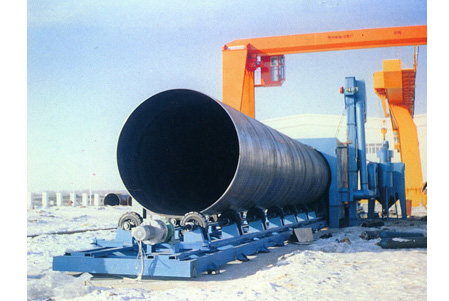

    • Φ15-Φ50 steel tube outside wall shot blasting machine

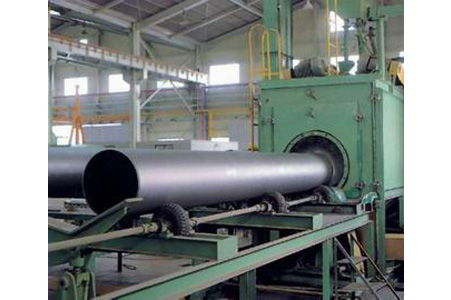

    • Φ80-Φ100 tube outside wall shot blasting machine

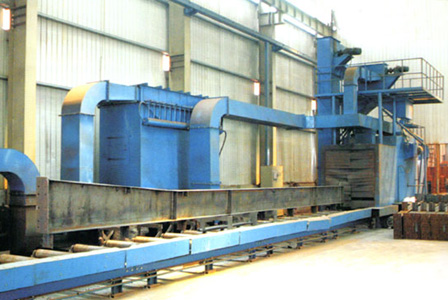

    • Φ1000-Φ2000 steel tube outside wall shot blasting machine.jpg

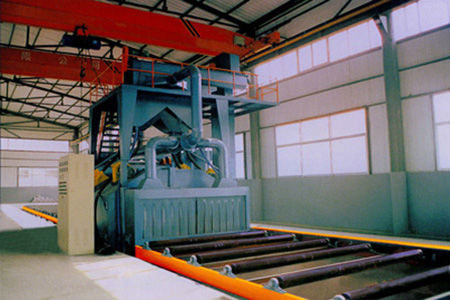

    • Φ2000-Φ3000 steel tube outside wall shot blasting machine.jpg

    • Φ80-Φ100 tube outside wall shot blasting machine

    • Φ2000-Φ3000 steel tube outside wall shot blasting machine.jpg


    Model
    Tube specification
    (mm)
    Tube number for
    one time
    Impeller head number
    Appearance dimension
    (L*W*H)(mm)
    WTM-PW15-50
    (Φ15-Φ50) * 12000
    4
    2 pieces
    16600*4250*5600
    WTM-PW80-100
    (Φ80-Φ1000)* 12000
    2
    2 pieces
    16600*4250*5600
    WTM-PW1000-2000
    (Φ1000-Φ2000) * 16000
    1
    8 pieces
    16600*4250*5600
    WTM-PW2000-3000
    (Φ2000-Φ3000) * 12000
    1
    10 pieces
    16600*4250*5600
