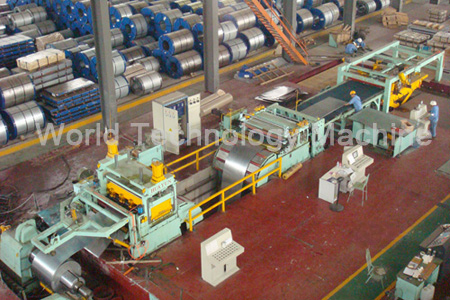

  • Thin sheet cut to length line (Thin coil cut to length machine)

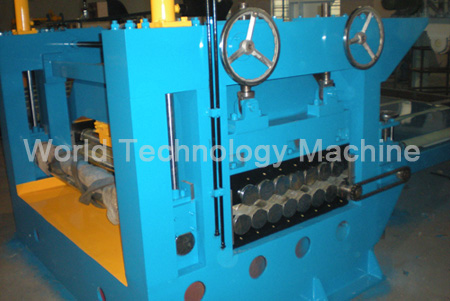

    • Leveling machine

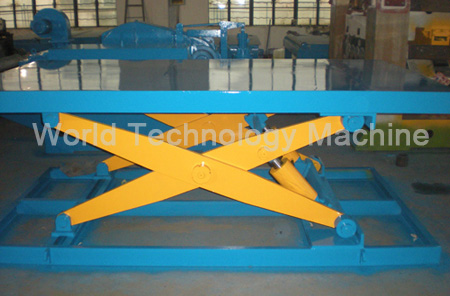

    • Steel sheet cut to length line

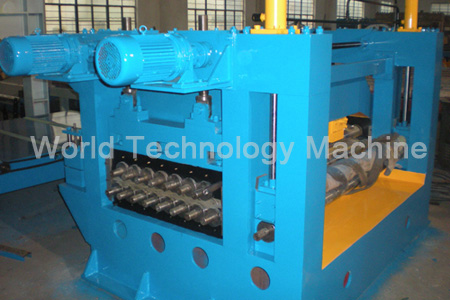

    • Automatic leveller

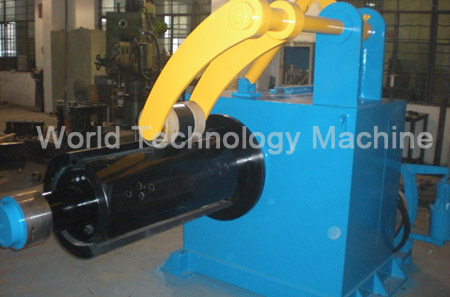

    • Recoiler

    • Thin sheet cut to length line


    Description:
    The thin sheet cut to length line is a kind of thin coil cut to length system, used to cut cold-rolled steel, coil plates, stainless steels, galvanized steel plate color, etc into length-gauged plates. Moreover, any specification can be cut via uncoil level and cut to length.
    This thin coil cut to length comprised of hydraulic coil-loading car, hydraulic single-spindle uncoiler, hydraulic coil-head-feeding and coil-press device, coil-end straightener, double-roller pinch feeder, central aligner, main leveler, encoding table, shearing machine, roll table conveyor, piling-up racket, lifting table and collecting table, hole accumulator, tensioner, recoiler, coil-discharging car, hydraulic system, electric control system.
    This metal coil decoiling, leveling and cut-to-length line is divided in to three kinds because of different strip thickness and strip width, including thin sheet cut to length line, middle thick coil cut to length and thick sheet cut to length line. Among them, the thin sheet cut to length line: strip thickness: 0.3-3mm or (0.5-3) mm; strip width: 300-1600mm or 300-1800mm.
    Application:

    The thin sheet cut to length line apply to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials. The thin sheet cut to length line is also divided into two kinds, due to different material of coils strip thickness, strip width, cutting speed and material of disc cutter.


    Specifications:
    1. WTM-(0.3-3)×1600mm cut to length line
    Material of coils: CR galvanized steel plate, carbon steel and etc.
    Strip thickness: 0.3-3mm
    Strip width: 300-1600mm
    Inner diameter of coils: Φ480-520mm.
    Max.outer diameter of coils: Φ900-1800mm
    Max.coil weight: 15000kg
    Uncoiling mandrel: Ф508×1700mm
    Leveling roller: Φ85
    Material of leveling roller: 40Cr
    Material of disc cutter: 6CrW2Si
    Recoiling spindle: Φ508×750mm
    Cutting speed: (0-60) m/min, adjustable

    2. WTM-(0.5-3)×1800mm cut to length line
    Material of coils: stainless steel
    Strip thickness: (0.5-3) mm
    Strip width: 300~1800mm
    Inner diameter of coils: Φ480-520mm.
    Outer diameter of coils: Φ900-1800mm
    Max.coil weight: 15000kg
    Uncoiling mandrel: Ф508x1700mm
    Leveling roller: Φ85
    Material of leveling roller: 40Cr
    Material of disc cutter: SKD-II
    Recoiling spindle: Φ508×750mm
    Cutting speed: (0-100) m/min, adjustable


    Technical parameters of thin sheet cut to length line:
    Strip thickness
    Strip width
    Max. Coil weight
    Shearing speed
    0.2-1.5mm
    900-2000mm
    30T
    0-100m/min
    0.5-3.0mm
    900-2000mm
    30T
    0-100m/min
