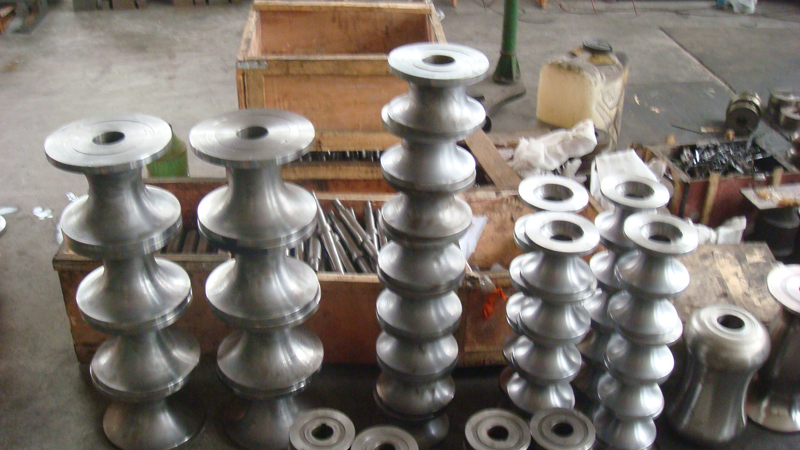

    Welded tube mould

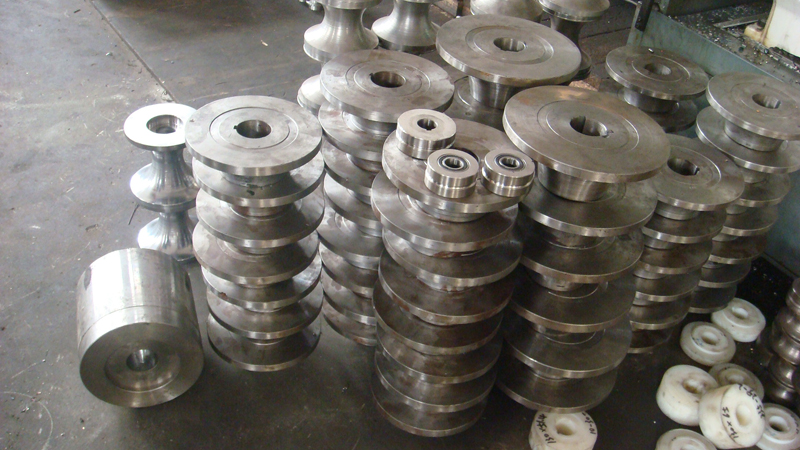

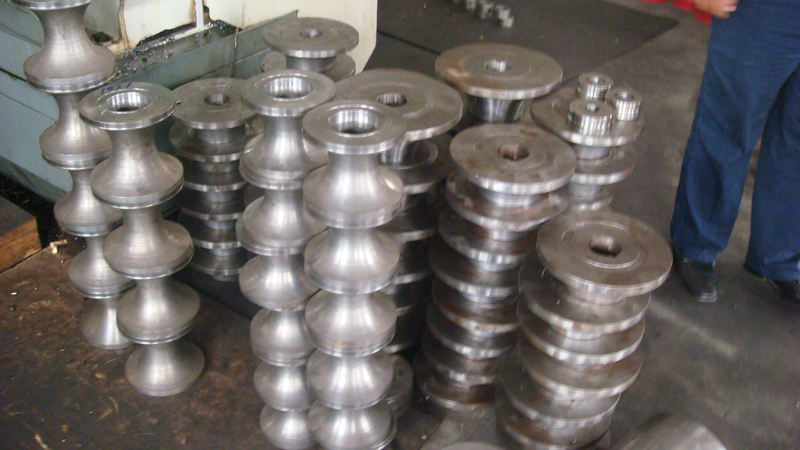

    Tube moulds Pipe moulds Welded tube moulds

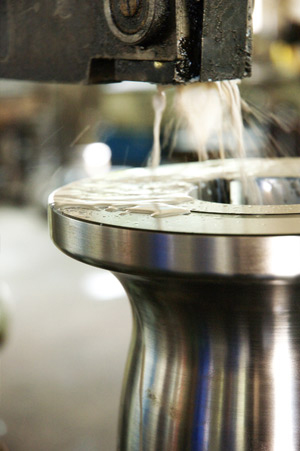

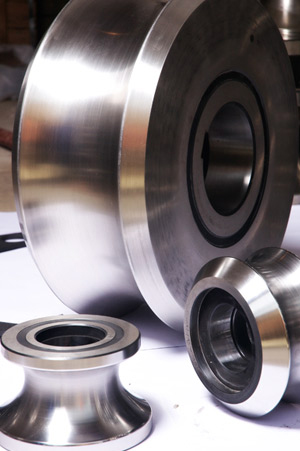

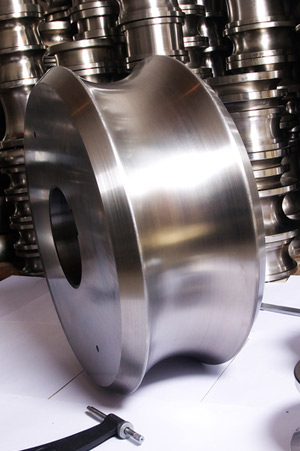

    Tube mould Pipe mould Welded tube mould

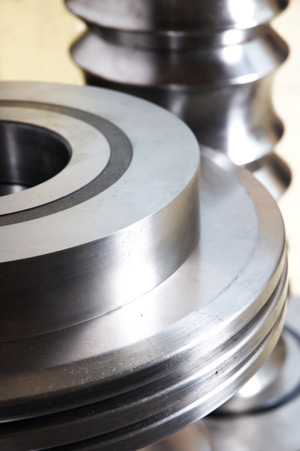

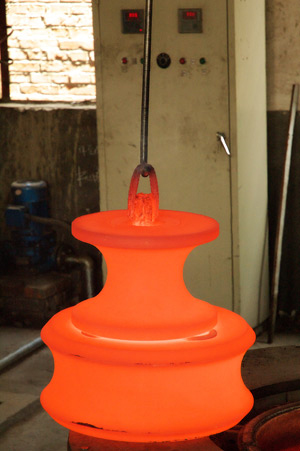

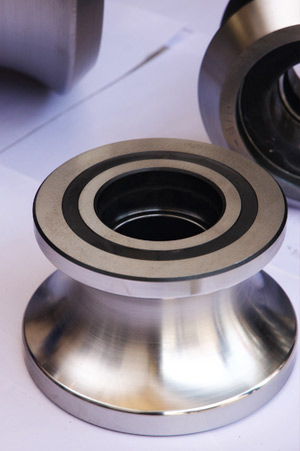

    Welded pipe mould Tube mould making Welding tube mould

    Welded tube mould
    Process technology:
    Forging ¡ú Lathe operation ¡ú Grinding operation ¡ú Numerical control lathe operation ¡ú Vacuum hardening
    Main parameters:
    Mould for round tube
    Tube specification: ¦µ5-¦µ325
    Mould material: Cr12/Cr12MoV/SKD11
    Tolerance range(roundness): 0.05
    Hardness range: 60-63HRC
    Application length(mm): 6-300
    Application thickness(mm): 0.2-8.0    		 Mould for square tube
    Tube specification: F10*10-F300*300
    Mould material: Cr12/Cr12MoV/SKD11
    Tolerance range(flatness): 0.04
    Hardness range: 60-63HRC
    Application length(mm): 6-300
    Application thickness(mm): 0.2-8.0    		 Mould for rectangular tube
    Tube specification: F10*20-F100*50
    Mould material: Cr12/Cr12MoV/SKD11
    Tolerance range(flatness): 0.04
    Hardness range: 60-63HRC
    Application length(mm): 6-300
    Application thickness(mm): 0.2-8.0
