  • Butt welder

    Introduction of the butt welder
    Butt welder is one of the important equipments for the high frequency welded tube production line. Its function is to shear the end parts in the loop and head parts from the flatten machine parallely, then keep them in a line and weld with CO2 protection. The machine uses PLC control with reasonable design and compact structure. The automation is high, it is a typical integrated equipment of mechanical-electrical-hydraulic.
    Material: low carbon steel, low alloy steel with σb≤580Mpa,σs≤340Mpa

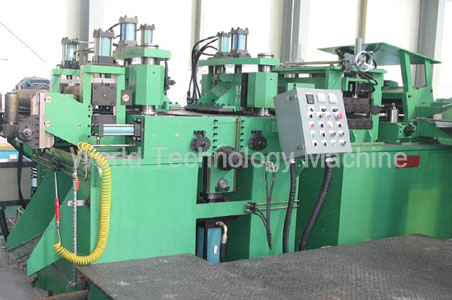

    • 45 butt welder

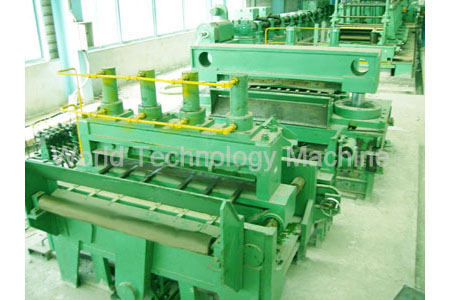

    • 89 butt welder

    • 114 butt welder

    • 165 butt welder

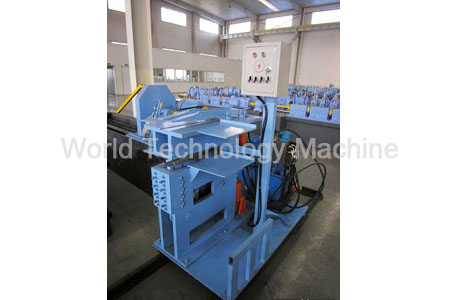

    • 219 butt welding machine

    • 273 butt welder


    Model
    Max . dia.(mm)
    Strip width(mm)
    Strip thickness(mm)
    Shearing type
    Welding type
    WTM-DH45
    Φ45
    50-150
    1-5
    Pneumatic
    Manual
    WTM-DH89
    Φ89
    60-290
    1-5
    Pneumatic
    Manual
    WTM-DH114
    Φ114
    140-360
    1.5-5.5
    Hydraulic
    Manual
    WTM-DH165
    Φ165
    190-530
    2-6
    Hydraulic
    Manual
    WTM-DH219
    Φ219
    350-700
    3-8
    Hydraulic
    Manual
    WTM-DH273
    Φ273
    350-850
    3.5-10
    Hydraulic
    Manual
