  • Square & rectangular tube mill

    Introduction of the square & rectangular tube mill
    Square & rectangular tube mill is the equipment for closed profile steel production with sectional mould, fast roller changing with no spindle removal, load of the machine is low, which may not only decrease the roller cost but also save the time. Every four angles of the square and rectangular tubes has high intensity with no variation. The mill is composed of uncoiler, levelling machine, butt welder, storing device, high frequency equipment,etc.
    material: carbon steel and low alloy steel

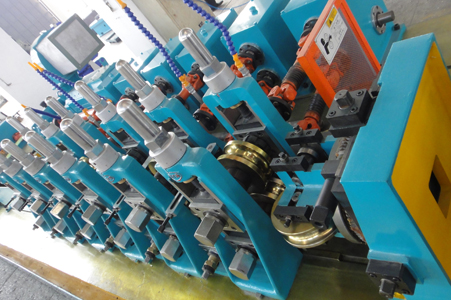

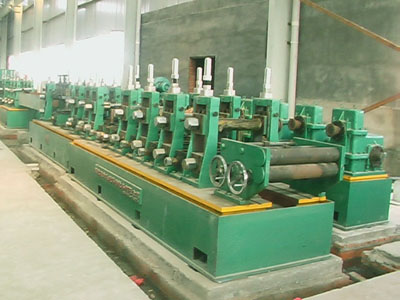

    • 100-5 square tube making machine

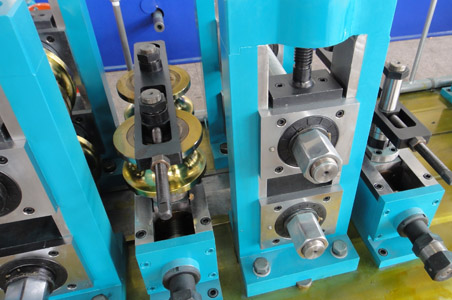

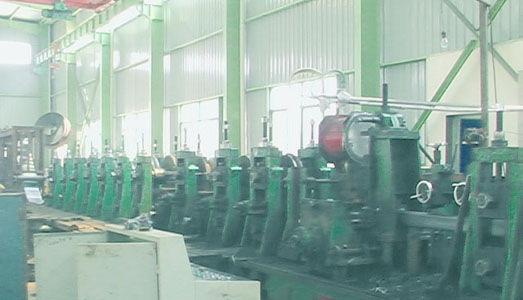

    • 160-6 square pipe mill

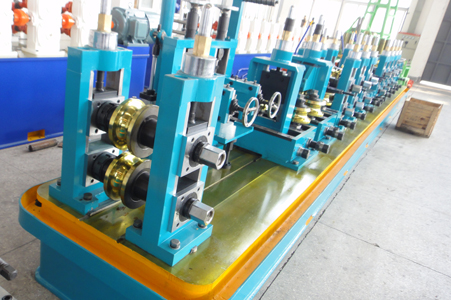

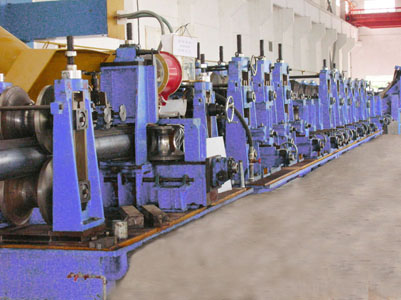

    • 160-6 square pipe making machine




    Model
    Tube
    Material
    Welding speed
    (m/min)
    Motor power(kw)
    High frequency power(kw)
    Square size (mm)
    Thickness
    (mm)
    δb
    δs
    WTM-ZG100-5
    40*40-100*100
    2-5
    ≤580Mpa
    ≤380MPa
    10-40
    185
    300 or 400
    WTM-ZG160-6
    60*60-160*160
    2-6
    ≤580Mpa
    ≤380MPa
    6-30
    250
    400 or 600
    WTM-ZG200-8
    60*60-200*200
    4-8
    ≤580Mpa
    ≤380MPa
    6-20
    400
    600 or 800
    WTM-ZG400-20
    100*100-400*400
    1.5-20
    ≤580MPa
    ≤380MPa
    6-20
    850
    1000 or 1200
