ZG32 high frequency welded tube making machine
Introduction: The ZG32 high-frequency welded pipe production line is used to produce both welded pipes of 10-38mm in diameter and 0.5-2.5mm in wall thickness. Square and rectangular pipes and deformed pipes of the corresponding size are available too.
Technological process:
Uncoiling → Cutting and welding → cage accumulator →(feeding、forming),(seam guide、HF welding、squeezing、deburring),water cooling, sizing, rough straightening → STD flying saw →checking and collecting →packing→storage
Main specifications:
(1) Raw material specifications
(2) Low carbon steel, low alloy constructional steel CR, HR, GI coils
(3) Mechanical properties: σb≤520Mpa, σs≤340MPa
(4) Width range of steel strip : 30-120mm
(5) Thickness of steel strip: 0.5-2.5mm
(6) Strip coil
Inner diameter: φ580-φ640mm
Outer diameter: φ800-φ1500mm
Coil weight: ≤1.5 tonv
Finished pipe specifications:
(1) Pipe diameter φ10-φ38mm
(2) Wall thickness 0.5~2.5mm for round pipes; 0.5-1.8mm for square/rectangular pipes.
(3) Length of cutting 4~9m
(4) Length-cutting precision: +/-3mm
Forming speed
20~100m/min
Total power capacity
Approx. 400kw
Compressed air:
(1) Flow rate: 6m3/min
(2) Pressure: 5-7kg/ cm2
Water supply for machine set
(1) Flow rate: 20t/h-30 t/h
(2) Reservation pool capacity: 30m3
Workshop arrangement:
Width of workshop: 6m
Length of workshop: 50m
Height of workshop (from ceiling trail to floor): ≥5 m

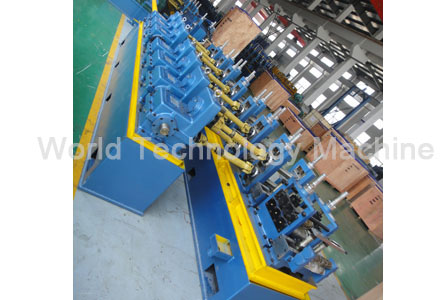

High frequemcy welded tube mill

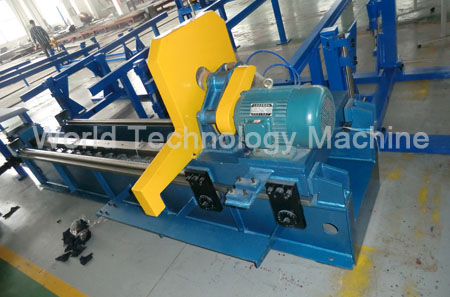

Computer cutting saw

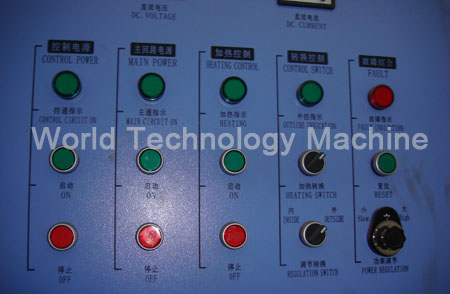

High frequency part

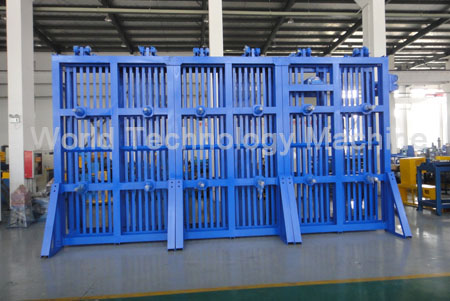

Vertical accumulator
