  Wuxi Anber Machine Com.Ltd.-- --Slitting line
(3) 3.0*1400 automatic slitting line

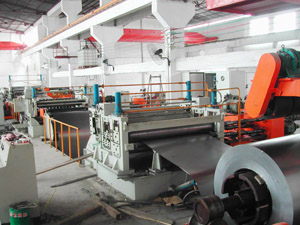

automatic slitting line

  Name:automatic slitting line

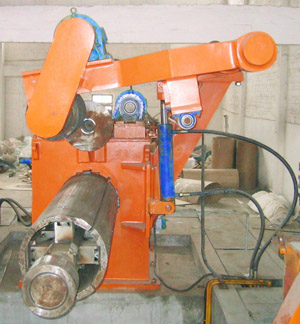

Hydraulic decoiler


  Name:hydraulic decoiler

Main parameters :
Size:25000mm*8000mm*2000mm
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness: 0.4-3.0mm
Width: 1350mm
Coil I.D: ¦Õ508mm
Coil O.D: ¦Õ1600mm(mm)
Coil weight: 15t(max)
Slitting product:
Coil I.D: ¦Õ508mm
Minimal width :10mm
Slitting number: 60(coil thickness0.5mm), 25(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 180KW
Speed: 0-120m/min
Slitting type: rolling shear


Consists of the slitting line
ABE-SL-2 Slitting Line ABE-SL-3 Slitting Line
ABE-SL-4 Slitting Line ABE-SL-5 Slitting Line
