Stainless steel tube
Name: small diameter stainless steel seamless tube
|
Specifications:
1. Outside diameter: From 2mm to 6mm
2. Grade:304, 304L, 321, 316, 316L, 310S.
Application:
1. General service
2. Curatorial Industry
3. Food Industry
4. Ornamental
5. Aerospace Industry
6. Petrochemical
7. Fluid transport
8. Nuclear Industr
9. Boiler heat- exchanger
10. Oil and gas service |
|

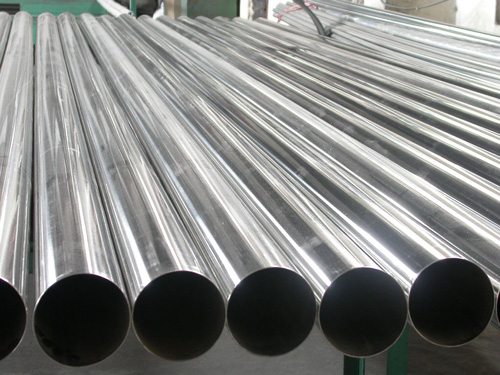

Name: large diameter stainless steel seamless pipe
|
Specifications:
1. Outside diameter: from 159mm to 800mm
2. Grade: 304, 304L, 321, 316, 316L, 310S.
Application:
1. General service
2. Petrochemical Industry
3. Aerospace Industry
4. Fluid transport
5. Nuclear Industr
6. Heat Exchanger
7. Structural
8. Oil and gas service
|
|

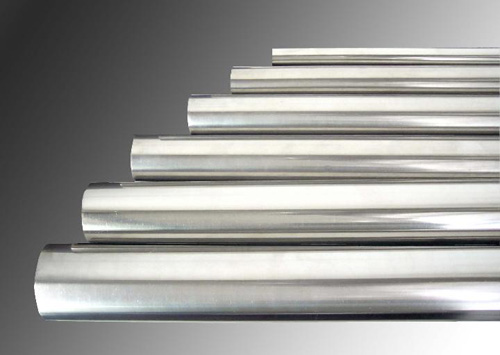

Name: cold drawn seamless stainless steel pipe
|
Specifications:
1. Type: duplex and austenitic
2. Process method: cold drawn and cold filtered
3. Diameter: 6 to 219 mm
4. Wall thickness: 0.8 to 12mm
5. Grade: 2205 (S31803) 304, 304L, 316L, 321
Application:
1. General service
2. Fluid transport
3. Pressure
4. High and low temperature
5. Structural
6. Heat transfer
7. Oil and gas service
8. Ornamental
9. Packing: in bundles or seaworthy wooden cases.
|
|
Name: stainless steel pipe/stainless steel tube
|
Specifications:
1. Type: duplex and austenitic
2. Process method: cold drawn and cold filtered
3. Diameter: 8 to 114 mm
4. Wall thickness: 0.8 to 4.0mm
5. Grade: 201, 202, 301, 304, 304L, 316, 316L, 321, 409, 430 etc
6. Application: heat exchanger, boiler, condenser, pressure vessel, automobile exhaust.
7. Packing: in bundles or seaworthy wooden cases.
|
|
Name: square stainless steel welded tubes
|
Specifications:
1. Size: (10-100)mm x (10-100)mm
2. Thickness: 0.3-4.0mm
3. Length: 6m
4. Grade: 304, 201, customers¡¯ requests available
5. Process method: cold drawn, automatic, nitrogen protection
6. Application: construction, upholstery instrument.
7. Packing: in bundles or seaworthy wooden cases. |
|
Name: stainless steel tubes
|
Specifications:
1. Type: austenitic
2. Process method: cold drawn
3. Diameter: 6 to 530 mm
4. Wall thickness: 0.8 to 28mm
5. Grade: 304, 304L, 321, 316, 316L, 310S
6. Surface finish: annealed, manual polished, mechanical polished
7. Packing: in bundles or seaworthy wooden cases. |
|

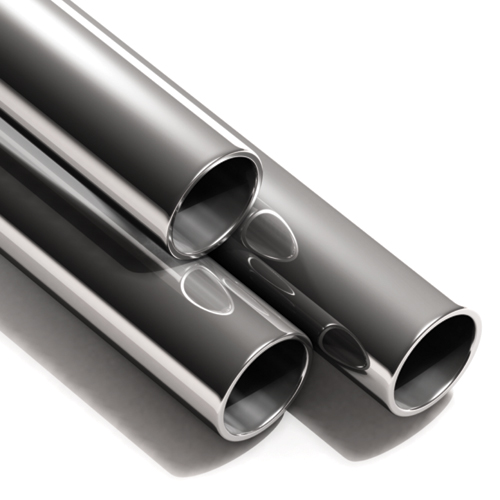

Name: stainless steel welded pipe
|
Specifications:
1. Commodity: welded austenitic stainless steel pipes
2. Surface finish: annealed, Polish, Brush, etc.
3. Grade: 201, 202, 304, 304L,316/316L, 430 with GB, ANSI, EN, JIS, BS & ISO materials designations
4. Standards: JIS, DIN, GB, BS, ASTM(ASME), ETC.
5. O.D.: 0.405" to 12"
6. W.T.: 0.049" to 1.125"
7. Applications: for fluid and gas transport ;Structure and machining. Etc.
8. Packing: plastic bag for each piece then packed in seaworthy wooden cases. |
|

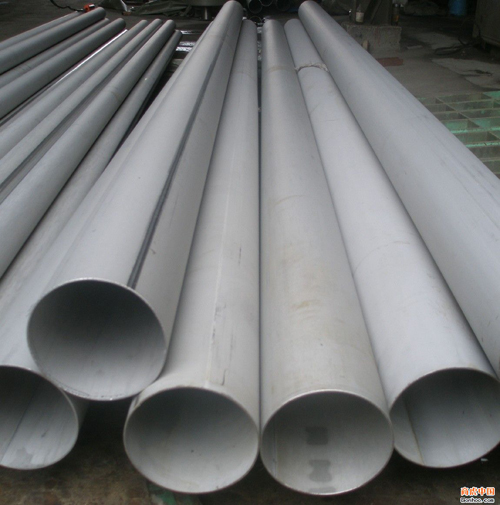

Name: stainless steel welded pipes
|
Specifications:
1. Outside diameter: 9.5mm-114.3mm
2. Wall thickness: 0.3mm-3. 0mm
3. Grade: 201#, 202#, 304#, 316#, 316L, 430#, etc.
4. Surface: mirror polish, satin polish, without polish
5. Process method: automatic shape, cold drawn, nitrogen protection
6. Packing: plastic bag, knitted plastic bag, wooden box, or according to customers
7. Application: decoration, upholstery and structure
|
|

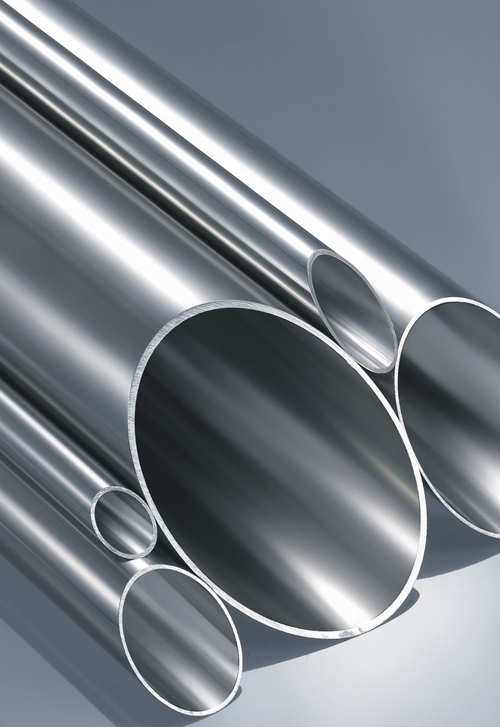

Name: thin wall stainless steel pipe
|
Specifications:
1. Type: austenitic
2. Process method: cold drawn and cold rolled
3. Outside diameter: from 6 to 650mm
4. Thickness: schedule 5S, 10S, 40S, 80S, 160, etc.
5. Grades: 321, 304, 304L, 316, 316L, 321, 310S, 317L, 347, 347H, 304H, 321H, 304LN
Equipments:
1. Medium frequency induction furnace: 2 *30 tons
2. Electric arc furnace: 1* 30 tons
3. Argon-oxygen decarbonization: 2 * 30 tons
4. Piercing lines: 4 lines (diameter: from 50 to 240mm)
5. Cold drawing lines: 18 lines (diameter: from 6 to 650mm)
6. Cold rolling lines: 6 lines (diameter: from 16 to 159mm) |
|

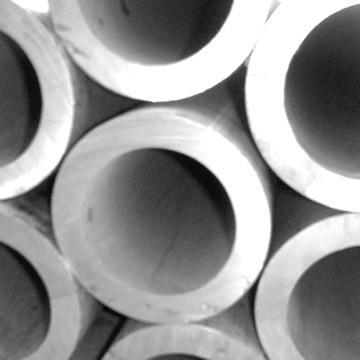

Name: thick-wall cold-drawn seamless stainless steel pipe
|
Specifications:
1.Standard: ASTM/ASME A312, 269, 213, 511, DIN17458, 174563.
2. Grade: TP304/304L,TP316/316L,TP321,310S
3. Diameter: 21.3 to 530 mm
4. Wall thickness: 4.5 to 20mm
5. Application: chemical, oil and gas service
6. Packing: in bundles or seaworthy wooden case |
|
|
|
