  Wuxi Anber Machine Com.Ltd.-- --Hydraulic Tube Bending machine
Introduction of the tube bending machine
Tube bending equipment is used to bend tubes and pipes using computer-controlled machines. The computerized equipment ensures that the finished product is efficient and high quality. The modern technology used by CNC machines has made it possible to produce high volume, close tolerance, tubular metal parts quickly and inexpensively.
Tube bending can be done using both cold and hot working processes. Often the process alters the mechanical properties of the original material. Tube bending equipment is used to supply products to the agricultural, construction, aerospace, automotive, electrical and medical industries, all of which depend upon several lengths and strengths of tubing in everyday operations.
A tube fabricator can offer several standard shapes for tube bending, such as squares or circles, in addition to a wide range of custom tubing shapes. Tube bending is a widely available specialized service.

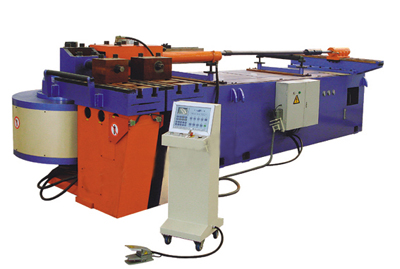

Φ32-168 automatic single head hydraulic bending machine

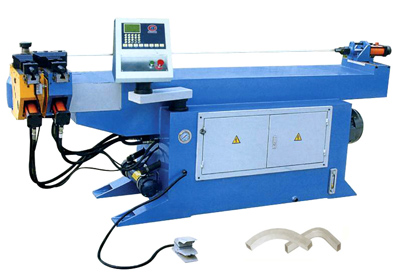

Φ32 single head hydraulic tube bending machine Name: Φ32 single head hydraulic tube bending machine Specification:
Max bending capability:Φ32*1.8mm
Range of bending: 0-185
Range of radius(mm):30-160mm
Motor power(kw): 3.7(5HP)
Machine size(L*W*H):1900*900*900mm
Weight(kg): 600

Φ38 single head hydraulic tube bending machine
Name: Φ38 single head hydraulic tube bending machine
Description:
It is a high performance medium size bending machine which can be widely used on mass production and standardized products, such as: blast pipe, seat, fender guard and all the steel pipe furniture, etc.
Specifications:
Max bending capability: 38*2mm
Max bending radius: 170mm
Min bending radius: 30mm
Max bending angle(degree): 190
Motor powerr(kw): 4
Max working pressure(kg/cm2 ): 120
Machine size(L*W*H):700*1000*2400mm
Machine weight(kg): 1200


Total three page


 Φ32-168 automatic single head hydraulic bending machine
  Φ38-89 semi-automatic hydraulic tube bending machine
 Φ38-90 Double head hydraulic tube bending machine
 Mould for tube bending machine
