  Wuxi Anber Machine Com.Ltd.-- --Tube cutting machine
Manual tube cutting machine
Description of tube cutting
Tube cutting is a process in which tubes and pipes are cut using computer-controlled machines. Tube cutting can be done by a variety of methods that can involve both cold and hot working processes. The process is used for all types of tubing, shapes, and materials.
In addition to a wide variety of standard shapes, tube cutting can be used to make many custom tubing shapes as well. The tubing is cut to length with cut-off saws, horizontal band saws, lathes, lasers, or custom solutions. Tube cutting often utilizes technology to meet tolerances and specifications, using equipment like lasers and micro-part cutting technology. The specification of an application determine the particular methods used in tube cutting. Automatic deburring machines are available to remove burrs in a method known as supported shear tube cutting. Trimming some tubes to final lengths after bending can be done as well. End and surface finishes, along with cut tolerances and diameters, can be tailored to specifications.
Tube cutting is used in the agriculture, construction, aerospace, automotive, electrical and medical industries for applications that range from prototypes to large production runs.


Manual tube cutting machine
Manual tube cutting machine
Manual tube cutting machine

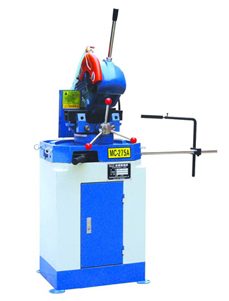

manual cutting machine
Name:manual cutting machine
Description:
This manual tube cutting machine has high efficiency with no noise and burr. Cutting feed is manual, the head can rotate 45 degree left and right.
Specification:
Blade position(90 degree):
Square tube: 60*60mm
Round tube diameter: Φ90mm
Round bar diameter: Φ38mm
Square bar: 38*38mm
Blade position(45 degree):
Square tube: 45*45mm
Round tube diameter: Φ60mm
Round bar diameter: Φ25mm
Square bar: 25*25mm
Machine size(L*W*H): 200*150*500mm
Machine weight: 200kgs

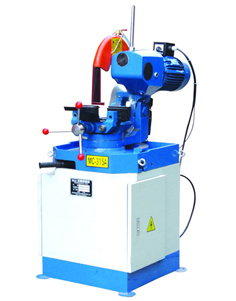

large diameter stainless steel seamless pipe
Name:manual cutting machine
Description:
This manual tube cutting machine has high efficiency with no noise and burr. Cutting feed is manual, the head can rotate 45 degree left-and-right.
Specification:
Blade position(90 degree):
Square tube: 90*90mm
Round tube diameter: Φ100mm
Round bar diameter: Φ55mm
Square bar: 50*50mm
Blade position(45 degree):
Square tube: 80*80mm
Round tube diameter: Φ80mm
Round bar diameter: Φ45mm
Square bar: 40*40mm
Machine size(L*W*H): 250*200*500mm
Machine weight: 300kgs

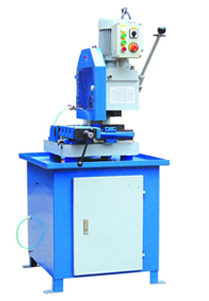

manual cutting machine
Name:manual cutting machine

Specification:
Blade position(90 degree):
Square tube: 125*125mm
Round tube diameter: Φ125mm
Round bar diameter: Φ90mm
Square bar: 90*90mm
Blade position(45 degree):
Square tube: 100*100mm
Round tube diameter: Φ100mm
Round bar diameter: Φ75mm
Square bar: 75*75mm
Machine size(L*W*H): 400*200*500mm
Machine weight: 400kgs
.
