  Wuxi Anber Machine Com.Ltd.-- --Tube cutting machine
Automatic tube cutting machine
Description of tube cutting
The automatic tube cutting machine is applied for cutting thin tubes, furniture tubes and motion equipment tubes with high efficiency.
Characteristic:
1. The cutting feed is stable with longer usage life of the cutter
2. Special design, for heavy type cutting with multi-gear driving, stable precision 3. Tthe feeding system is designed carefully, feeding length is setted at 6-640m/mz( three feedings)
4. With PLC control device, no connection point, simple maintenance
5. Stop automatically when there is no material
6. Solid structure of the machine with small vibration and longer uasge life
7. The coolant cycles automatically to ensure be smooth of the workpiece
8. The shavings can be disposed assembly with simple maintenance

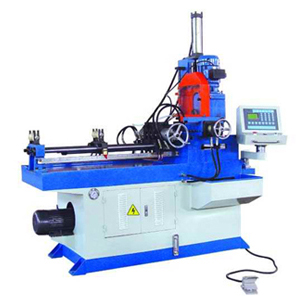

Automatic tube cutting machine
Automatic tube cutting machine
Automatic tube cutting machine
Name:Automatic tube cutting machine

Specification:
Square tube: 60*60mm
Round tube diameter: Φ80mm
Round bar diameter: Φ38mm
Square bar: 38*38mm
Machine size(L*W*H): 720*1600*1600mm
Machine weight: 650kgs

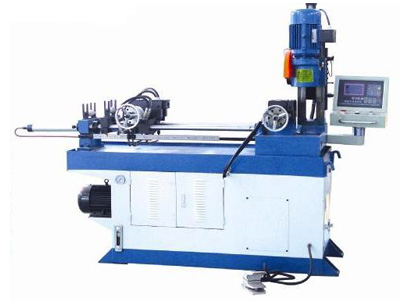

Semiautomatic tube cutting machine
Name:semiautomatic tube cutting machine

Specification:
Square tube: 110*110mm
Round tube diameter: Φ125mm
Round bar diameter: Φ75mm
Square bar: 65*65mm
Machine size(L*W*H): 850*1600*1600mm
Machine weight:800kgs



 Manual tube cutting machine
 Semiautomatic tube cutting machine
 Automatic tube cutting machine
