  Wuxi Anber Machine Com.Ltd.-- --Steel coils

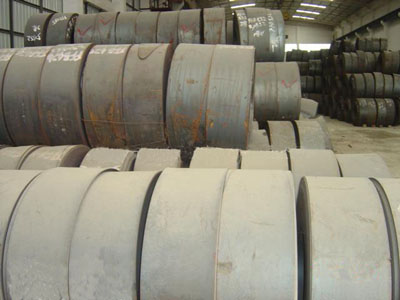

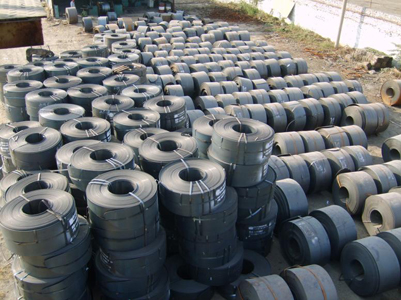

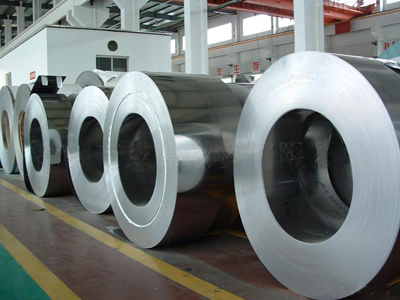

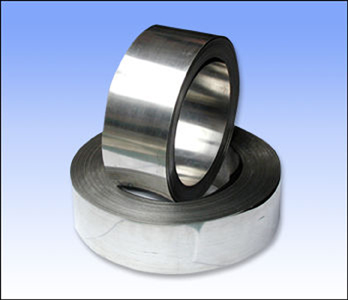

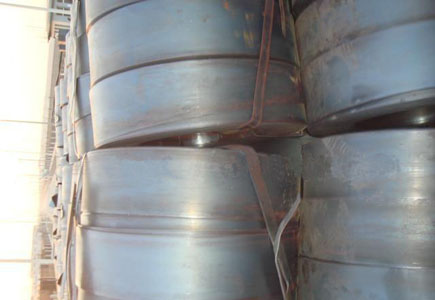

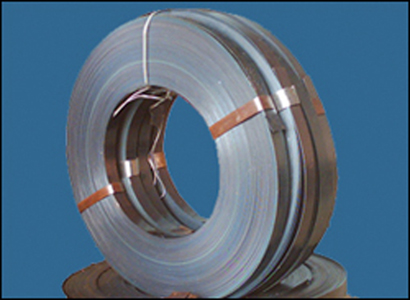

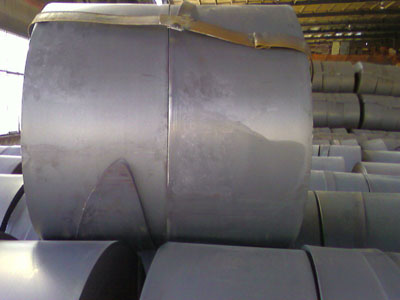

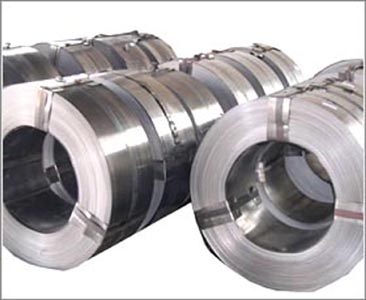

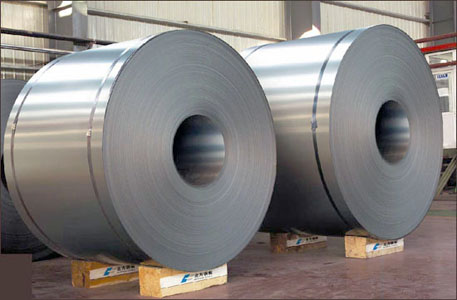

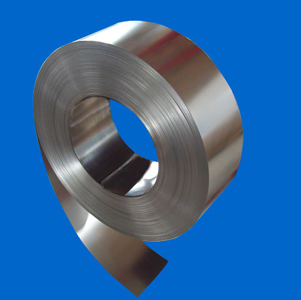

Steel coils

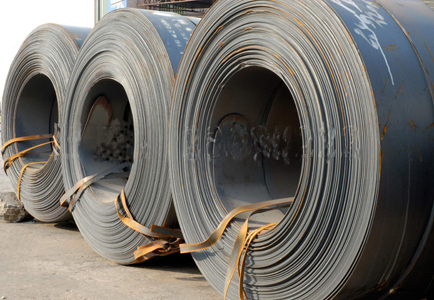

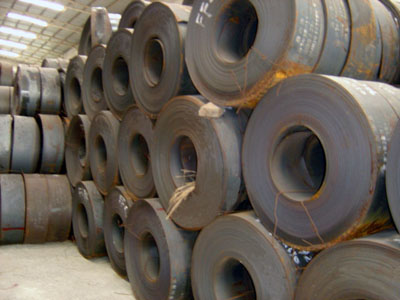

Hot-rolled strip steel

Strip steel requirement for different tube mill:

Tube specification: 8mm-20mm in diameter, 0.4mm-1.0mm in thickness
Material: cold-rolled strip steel with GB700-88 or GB1591-88 standard, low carbon steel or low alloy steel
Strip steel thickness(mm): 0.4-1.0
Strip steel width(mm): 25-65 (0.2mm)
Strip steel inner diameter(mm): Φ280-Φ460
Steel coil outer diameter(mm): Φ600-Φ1000
Max coil weight(kg): 800
Tube specification: 12mm-32mm in diameter, 0.5mm-2.0mm in thickness
Material: cold-rolled or hot-rolled strip steel with GB700-88 or GB1591-88 standard, low carbon steel or low alloy steel
Strip steel thickness(mm): 0.5-2.0
Strip steel width(mm): 25-125 (0.2mm)
Strip steel inner diameter(mm): Φ280-Φ460
Steel coil outer diameter(mm): Φ600-Φ1000
Max coil weight(kg): 800
Tube specification: 12mm-50mm in diameter, 0.5mm-2.5mm in thickness
Material: Q345/SM520-GB51500-53000PSI standard, low carbon steel or low alloy steel
Strip steel inner diameter(mm): Φ420- Φ570
Steel coil outer diameter(mm): Φ1000- Φ1500
Max coil weight(kg): 1500
Tube specification: 20mm-60mm in diameter, 1.2mm-3.5mm in thickness
Material: YB189-64 standard, low carbon steel or low alloy steel
Strip steel inner diameter(mm): Φ420-Φ570
Steel coil outer diameter(mm): Φ1000-Φ1500
Max coil weight(kg): 1500
Tube specification: 20mm-76mm in diameter, 0.8mm-4.0mm in thickness
Material: YB189-64 standard, low carbon steel or low alloy steel
Strip steel inner diameter(mm): Φ420-Φ570
Steel coil outer diameter(mm): Φ1000-Φ1500
Max coil weight(kg): 2000
Tube specification: 32mm-89mm in diameter, 1.2mm-4.5mm in thickness
Material: YB189-64 standard, low carbon steel or low alloy steel
Strip steel inner diameter(mm): Φ480- Φ520
Steel coil outer diameter(mm): Φ1000- Φ2000
Max coil weight(kg): 3000
Tube specification: 60mm-114mm in diameter, 2.0mm-5.0mm in thickness
Material: low carbon steel or low alloy steel
Strip steel width(mm): 140-356
Strip steel thickness(mm): 2.0-5.0
Strip steel inner diameter(mm): Φ500-Φ600
Steel coil outer diameter(mm): Φ1000-Φ1800
Max coil weight(kg): 4000
7 .Straightening
Tube specification: 60mm-165mm in diameter, 2.0mm-6.5mm in thickness
Material: low carbon steel or low alloy steel
Strip steel inner diameter(mm): Φ520-Φ680
Steel coil outer diameter(mm): Φ1000-Φ1800
Max coil weight(kg): 8000
Tube specification: 89mm-219mm in diameter, 3.0mm-10.0mm in thickness
Material: low carbon steel or low alloy steel
Strip steel inner diameter(mm): Φ600-Φ750
Steel coil outer diameter(mm): Φ1000-Φ1800
Max coil weight(kg): 12000
Tube specification: 89mm-273mm in diameter, 3.0mm-12.0mm in thickness
Material: cold-rolled or hot-rolled steel strip, low carbon steel or low alloy steel, Q235,Q345
Strip steel inner diameter(mm): Φ610
Steel coil outer diameter(mm): Φ61300-Φ61800
Steel strip width(mm): 300-850
Steel strip thickness(mm): 3.0-12.0
Max coil weight(kg): 15000
Tube specification: 165mm-325mm in diameter,4.5mm-12.0mm in thickness
Material: low carbon steel or low alloy steel
Steel strip width(mm): 480-1100
Steel strip thickness(mm): 4.5-12.0
Strip steel inner diameter(mm): Φ580-Φ760
Steel coil outer diameter(mm): Φ1300-Φ1800
Max coil weight(kg): 17000
Tube specification: 219mm-426mm in diameter,4.0mm-12.0mm in thickness
Material: hot-rolled or cold-rolled steel strip, low carbon steel or low alloy steel
Q195-Q235,Q345, X90, J55 with GB/T700-88, GB709-88, GB699-88 standard
Steel strip width(mm): 500-1400
Steel strip thickness(mm): 4.0-12.0
Strip steel inner diameter(mm): Φ570-Φ640
Steel coil outer diameter(mm): Φ1300-Φ2000
Max coil weight(kg): 20000
Tube specification: 8mm-20mm in diameter, 0.4mm-1.0mm in thickness
Tube specification: 12mm-32mm in diameter, 0.5mm-2.0mm in thickness
Tube specification: 12mm-50mm in diameter, 0.5mm-2.5mm in thickness
Tube specification: 20mm-60mm in diameter, 1.2mm-3.5mm in thickness
Tube specification: 20mm-76mm in diameter, 0.8mm-4.0mm in thickness
Tube specification: 32mm-89mm in diameter, 1.2mm-4.5mm in thickness
Tube specification: 60mm-114mm in diameter, 2.0mm-5.0mm in thickness
Tube specification: 60mm-165mm in diameter, 2.0mm-6.5mm in thickness
Tube specification: 89mm-219mm in diameter, 3.0mm-10.0mm in thickness
Tube specification: 89mm-273mm in diameter, 3.0mm-12.0mm in thickness
Tube specification: 165mm-325mm in diameter,4.5mm-12.0mm in thickness
Tube specification: 219mm-426mm in diameter,4.0mm-12.0mm in thickness
