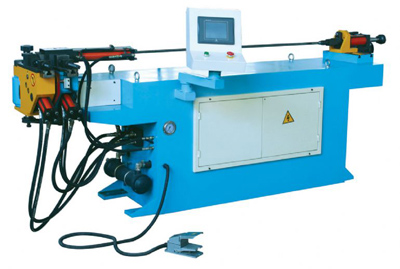

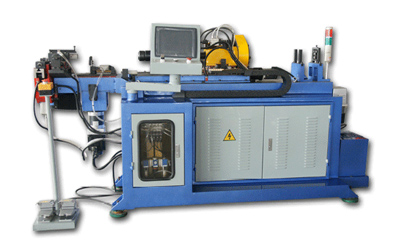

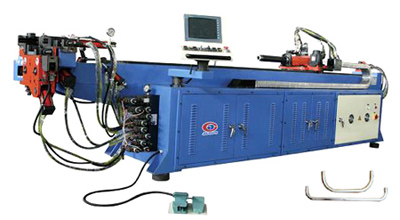

Φ32-168 automatic single head hydraulic bending machine
Name: Φ50 single head hydraulic tube bending machine
Specifications: Max bending capabilityΦ50*2mm
Max bending radius: 250mm
Min bending radius: 35mm
Max bending angle(degree): 190
Motor powerr(kw): 5.5
Max working pressure(kg/cm2 ): 120
Machine size(L*W*H):700*1220*2420mm
Machine weight(kg): 1500
Name: Φ75 single head hydraulic tube bending machine
Specifications: Max bending capability:Φ75*2mm
Max bending radius: 400mm
Min bending radius: 50mm
Max bending angle(degree): 195
Motor power(kw): 7.5
Max working pressure(kg/cm2 ): 120
Machine size(L*W*H):950*1300*3600mm
Machine weight(kg): 2500
Name: Φ90 single head hydraulic tube bending machine
Specifications: Max bending capability: Φ90*2mm
Max bending radius: 500mm
Min bending radius: 50mm
Max bending angle(degree): 195
Motor power(kw): 11
Max working pressure(kg/cm2 ): 120
Machine size(L*W*H):1000*1000*4000mm
Machine weight(kg): 3200
